2025 Trailblazer
Learn About the Trailblazer
HPC is proud to introduce the BEST value high performance enduro bike! High quality components, hand-built wheels and an INSANELY powerful motor system will make sure this is the best ride yet.

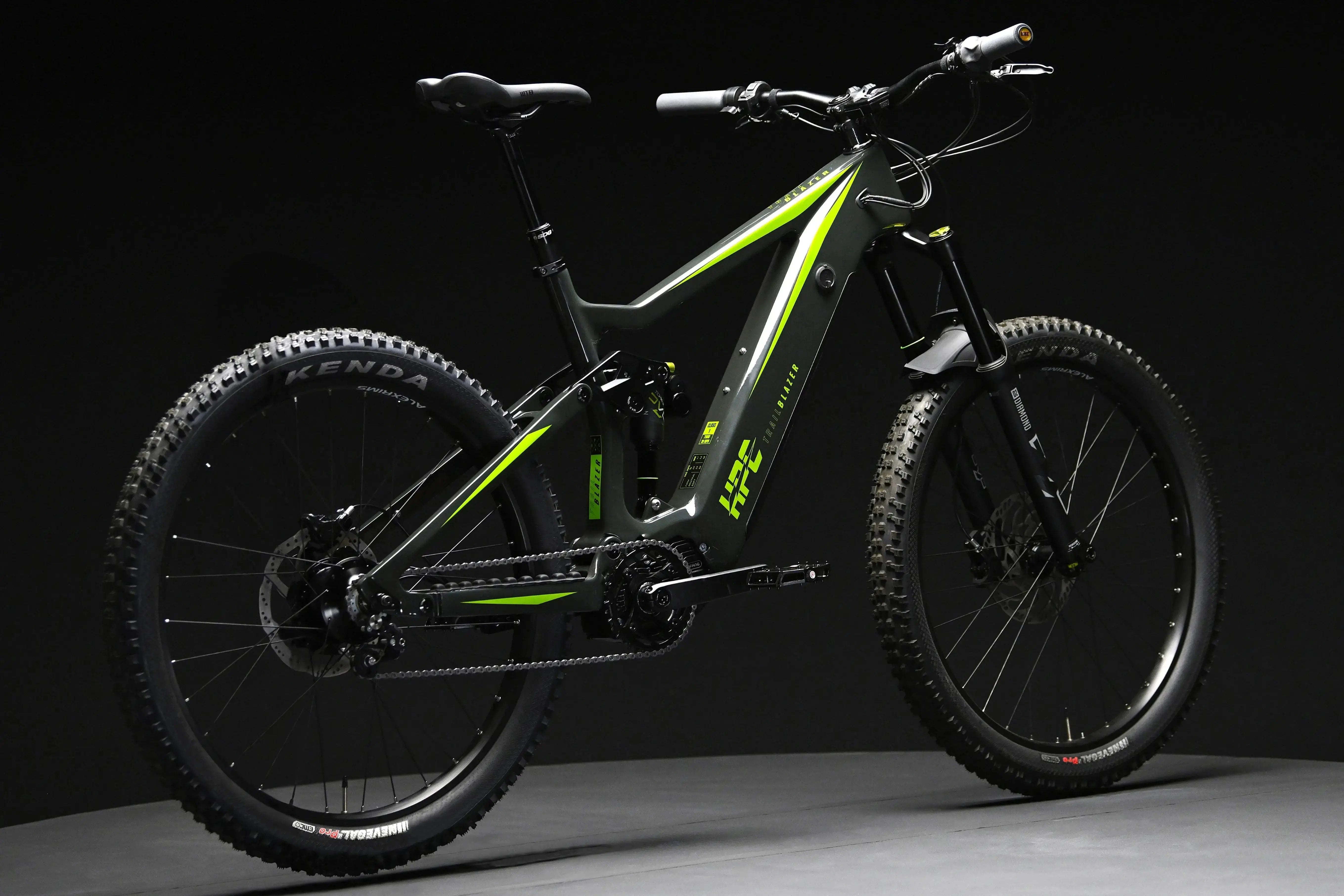

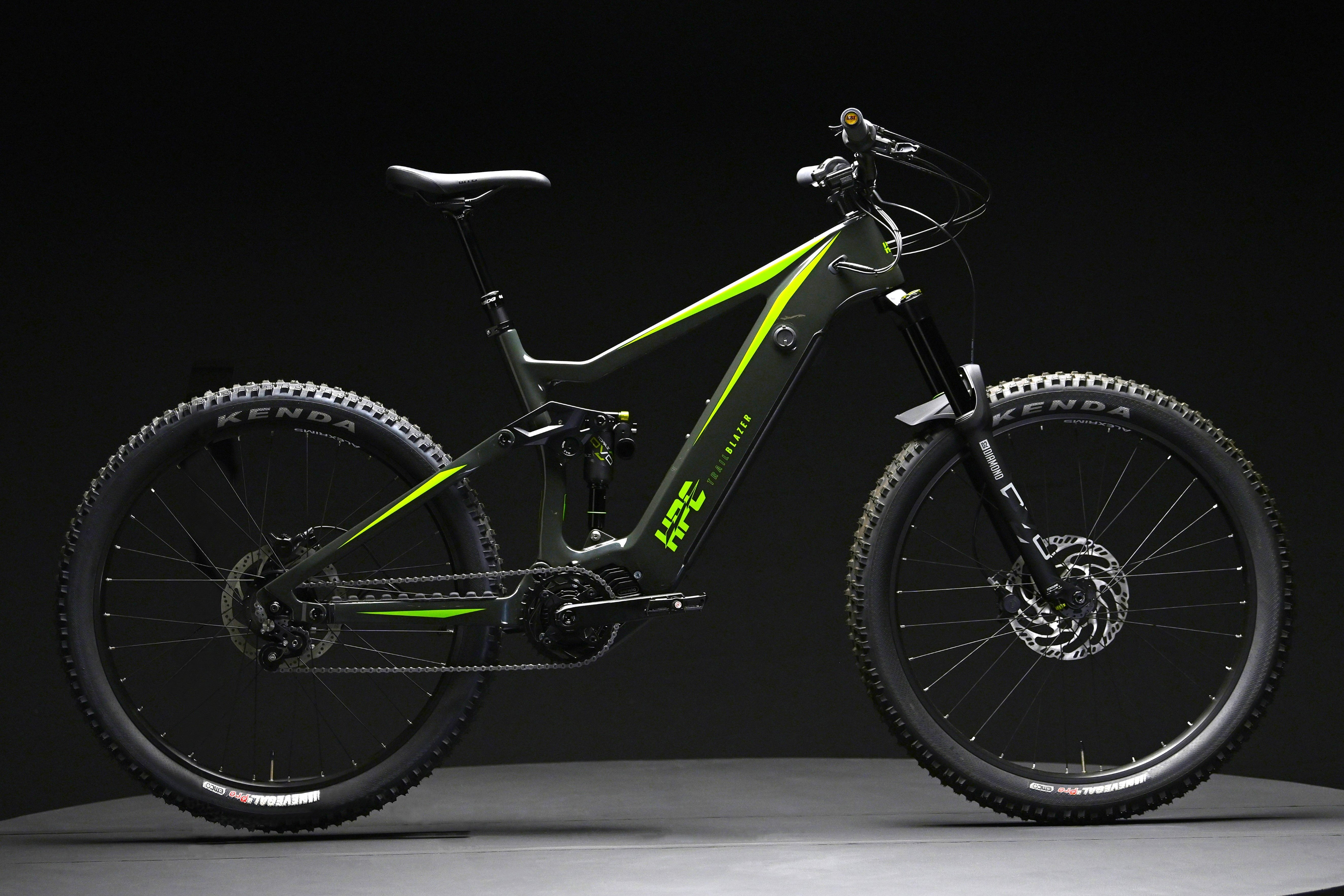

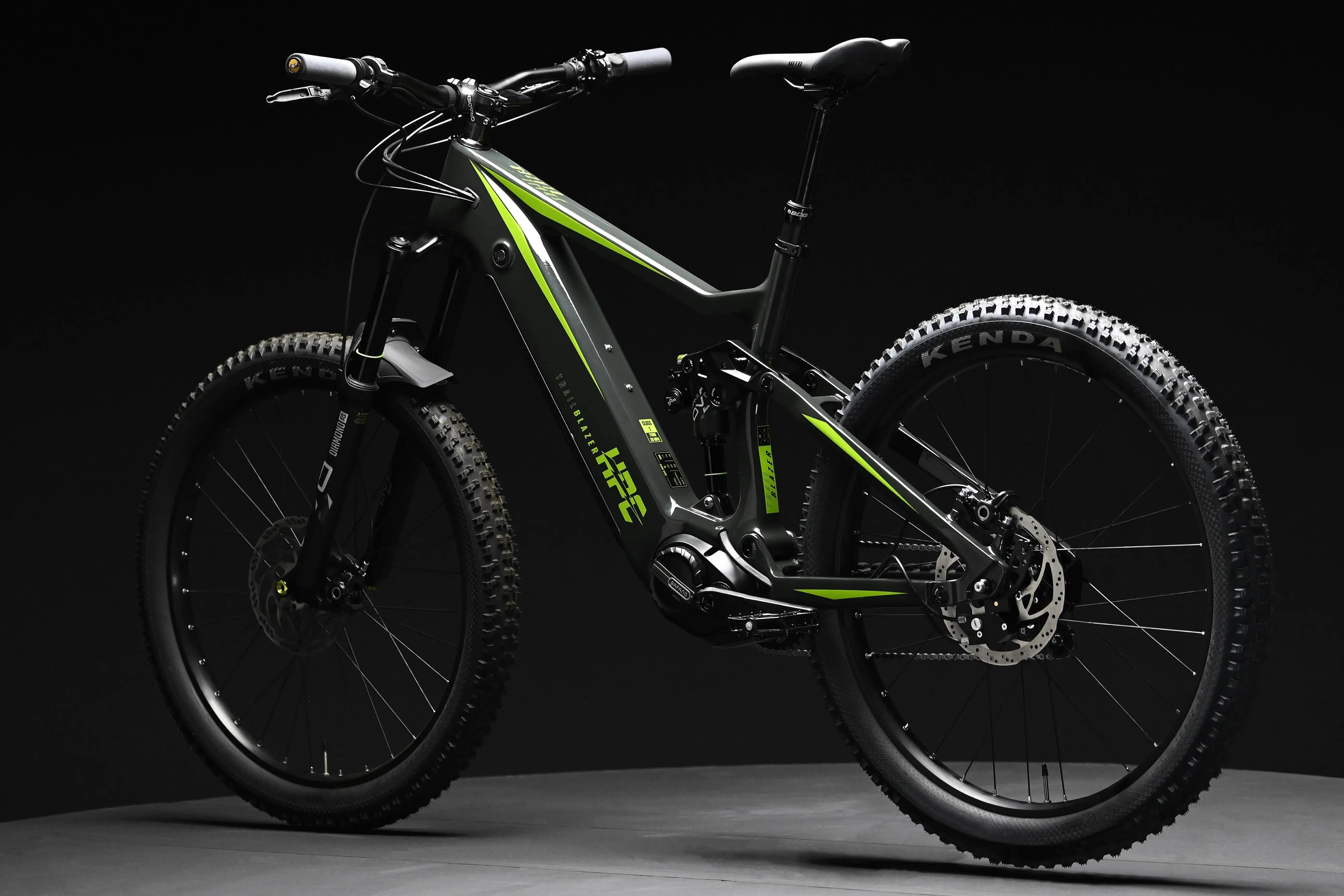

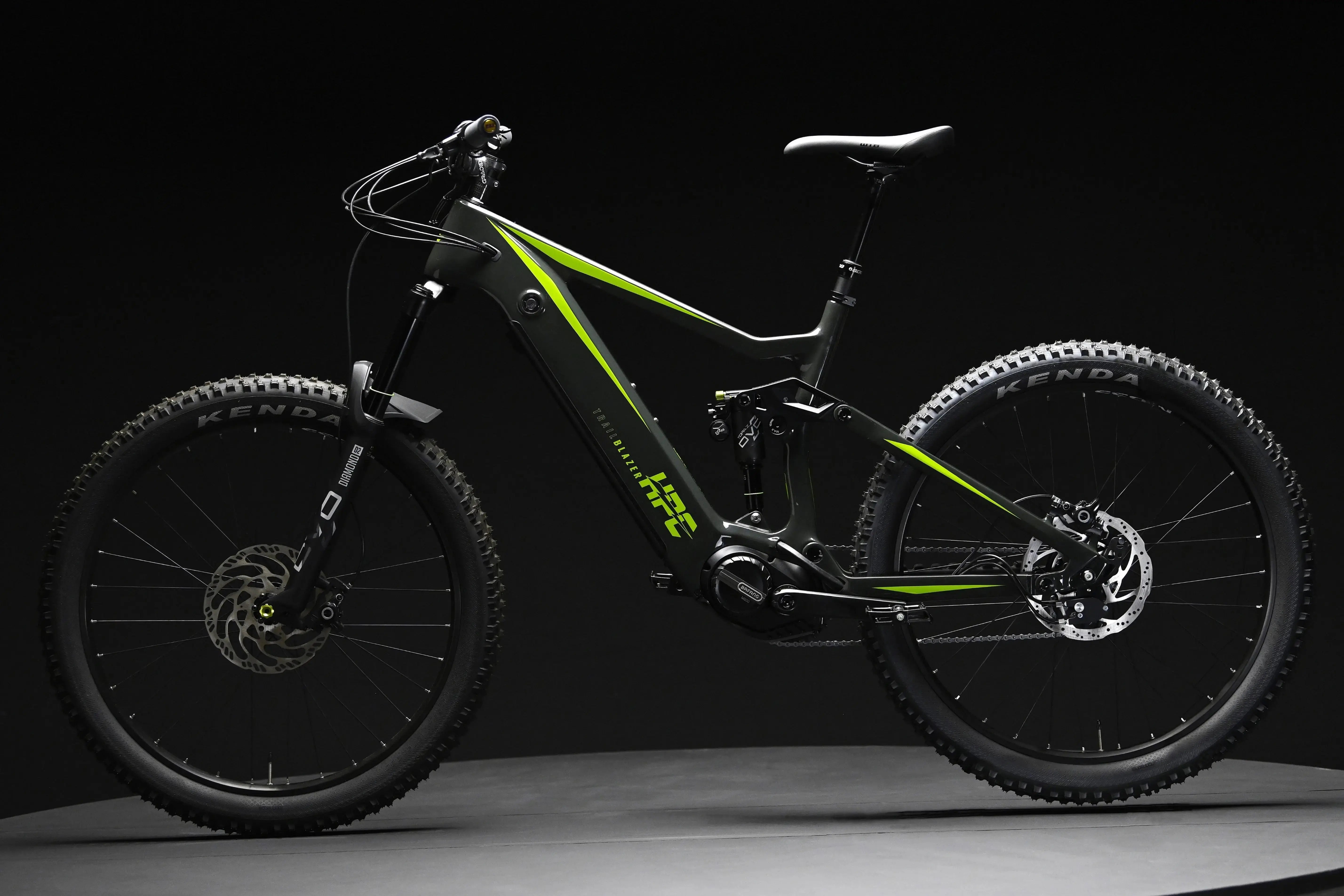

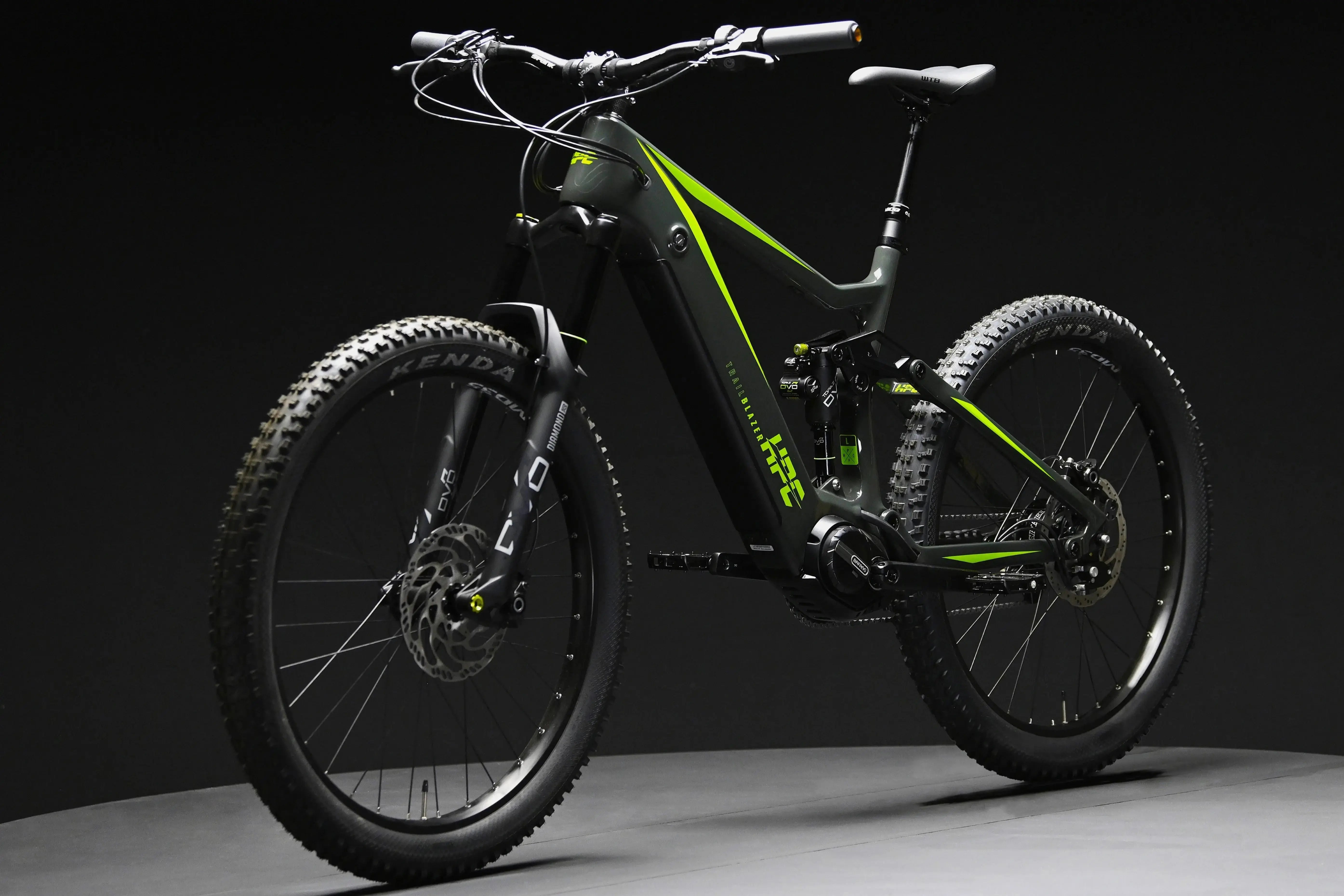

This full carbon trail bike is our first all new full suspension bike in 3 years, and we are beyond excited to share this bike with you. During frame development, we worked with DVO Suspension to refine kinematics and maximize suspension performance with full custom factory tunes on both the front fork and rear shock. This is a true lightweight, high performance machine that will please the serious trail rider to the mild mannered adventure seeker. People have been asking for a bike like this from us for a long time, and we are proud to finally deliver after 2 years of development and testing.
Imagine having a bike with up to 2X the power and torque of any of the mainstream big box brands, up to a 910Wh 52V USA made battery pack built into the frame that provides up to 45 miles of range, and an incredibly plush 160mm of factory tuned suspension travel. Well, dream no more, the wait is finally over!
Not only does this bike have torque sensing pedal assist, but is extremely unique in its ability to use a thumb throttle as well to take over power delivery on demand. 11-50T standard gearing allows for gears low enough to climb any hill you may encounter, even when using throttle only.

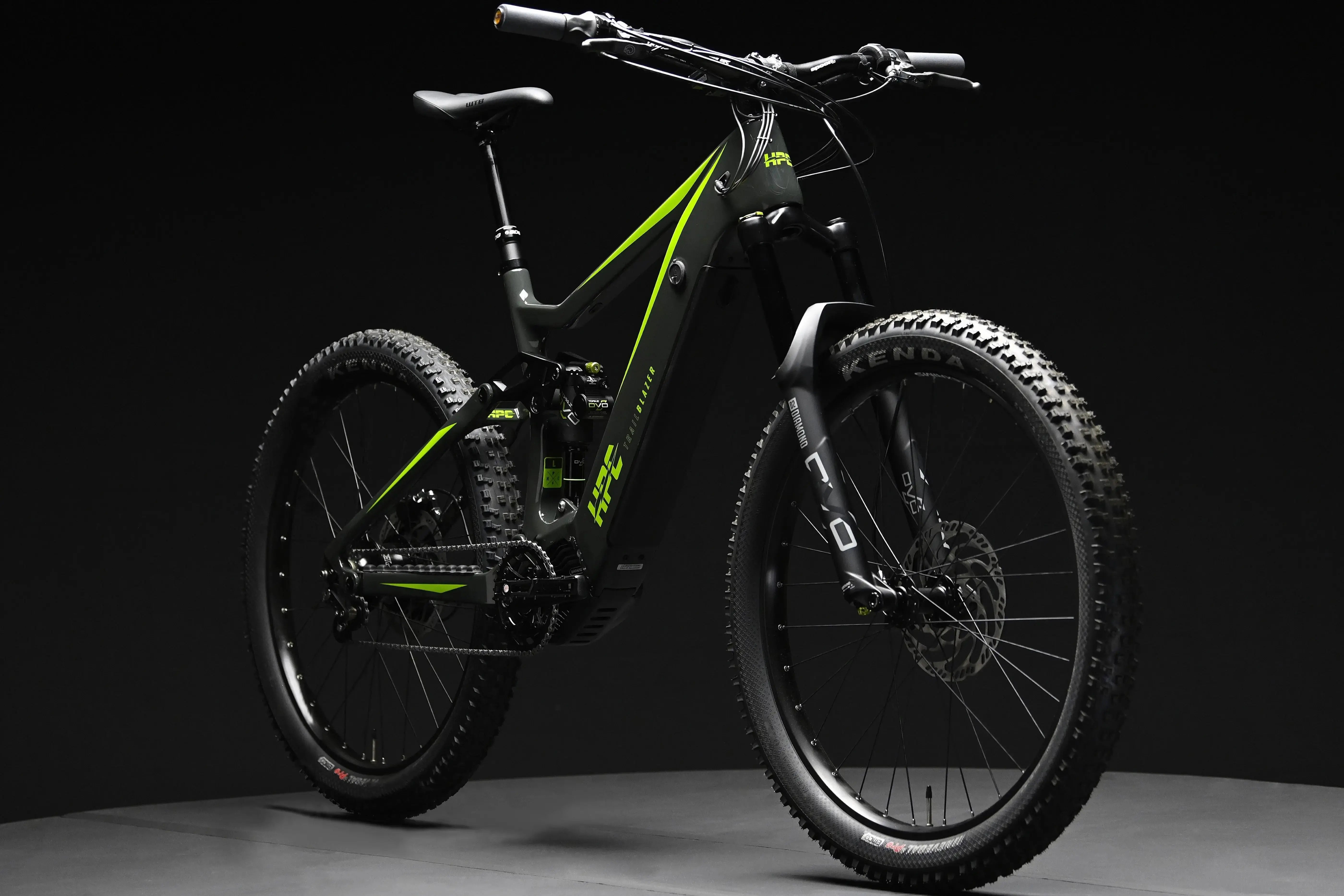

With a 160mm travel DVO Diamond D2 fork and a DVO Topaz T3 air shock delivering 155mm rear frame travel, this is a do it all type of bike you can rely on for rugged and reliable trail duty for years to come. A refined, ultra light weight chassis allows the Trailblazer to come in at a staggeringly low 51 lbs including the battery system for the base 750W version.
Power Levels: 750W / 1200W / 1800W
Torque: 100 Nm / 120 Nm / 160 Nm
Max Range: 25 miles (480Wh)/ 35 miles (720Wh)/ 45 miles (910Wh)
Battery: 48V (750W/1200W), 52V USA Made 10Ah (520Wh) / 15Ah (728Wh) / 17.5Ah (910Wh)
Weight: 51 lbs (750W/ base battery) - 54 lbs (1800W/910Wh battery/tubeless)
Technical Specifications
E-Bike
Motor
Bafang Mid Drive, custom controller/firmware, 750W / 1200W / 1800W
Battery
USA Made, Quick Change 48V / 52V (1800W), 10AH/15AH/17.5AH
UI/Remote
DPC 245, 5 Levels PAS, Bluetooth®, App capability w/Handlebar remote
Charger
Custom charger, 54.6V / 58.8V (1800W) 2A/4A/5A, DC 5.5 Plug, 100-240V
Wiring Harness
Custom HPC wiring harness w/ Brake Cutoff
Frameset
Frame
HPC Carbon Frame, 27.5"+ wheels (optional 29") full internal cable routing, 148mm spacing, 155mm of travel
Seat Binder
Alloy, 34.9 mm
Stem
FSA Orbit 1.5 ZS Internal Headset, sealed bearings
Suspension

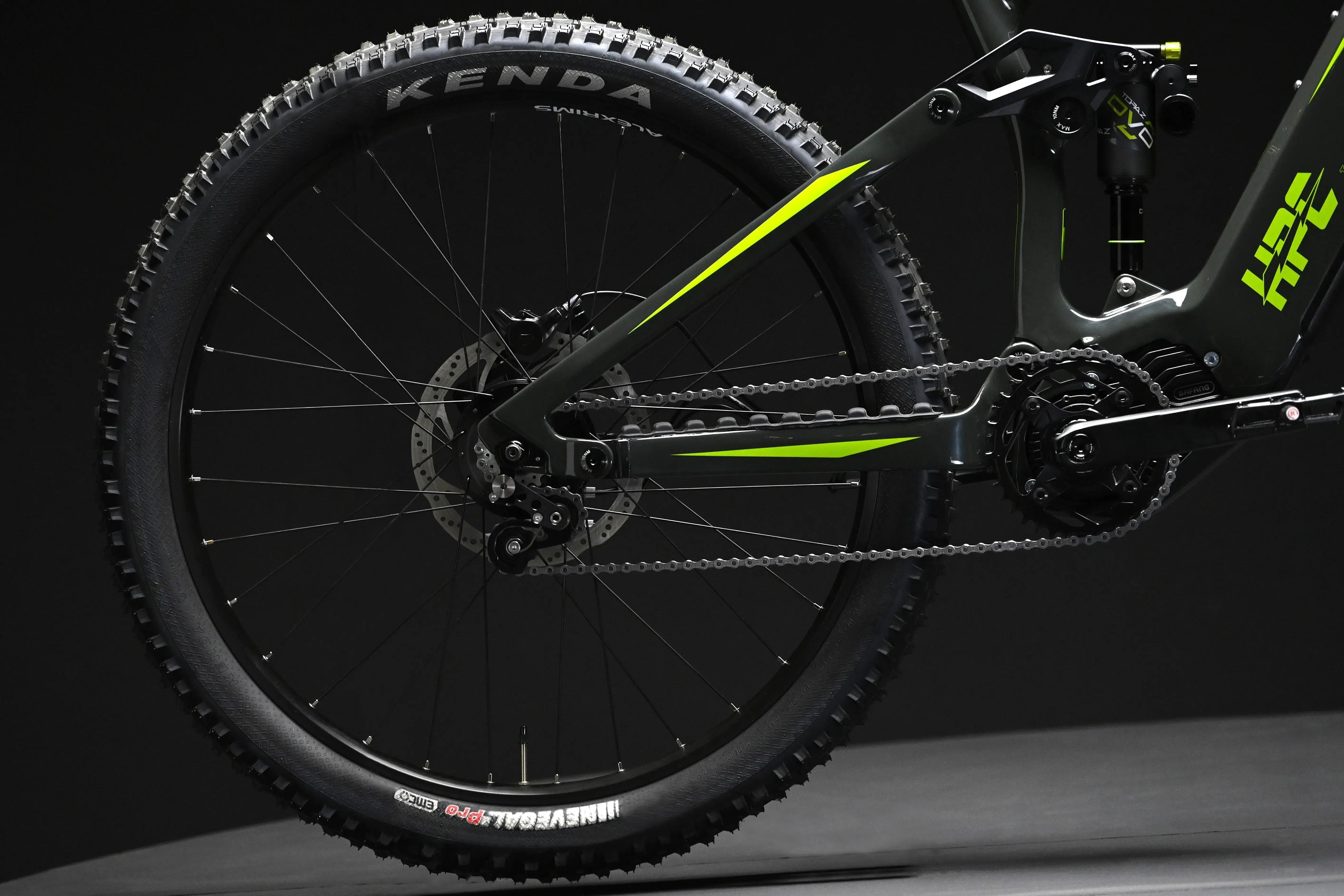

Rear Shock
DVO Topaz T3, 185x55 Trunion
Fork

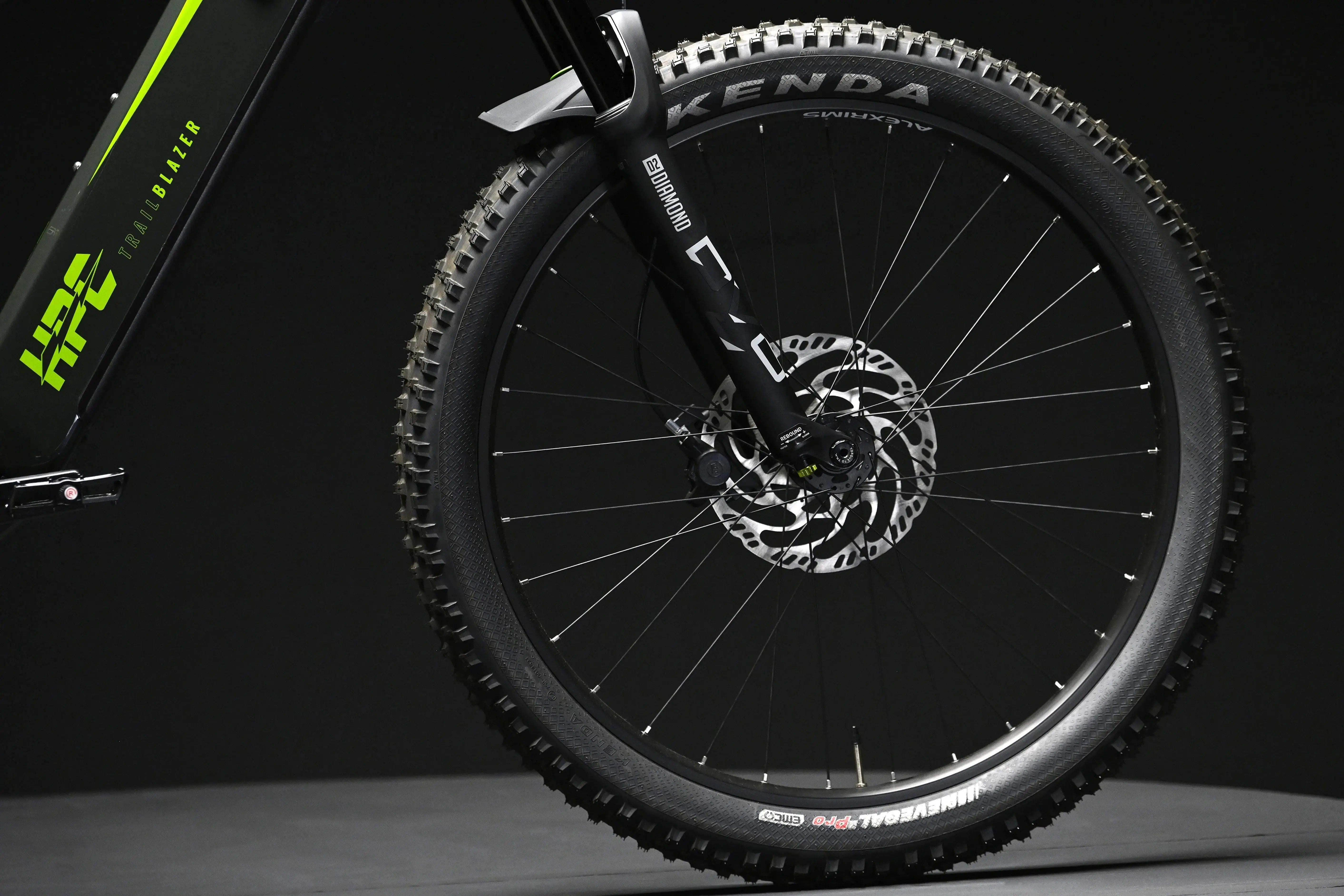

DVO Diamond D2, 29", 160mm Travel
Brakes
Front Brake
Magura MT4 Dual Piston, metallic pads, 180mm rotor
Rear Brake
Magura MT4 Dual Piston, metallic pads, 180mm rotor
Drivetrain
Shift Lever
SRAM GX Eagle, trigger, 12-speed, single click
Rear Derailleur
Sram GX Eagle, 12-speed
Cassette
Sram XG-1230, 12-speed, 11-50t
Chain
KMC E12 EPT, 124L
Crankset
Aluminum, Black, custom ISIS spline, 170mm
Chainring
Narrow/Wide, 104 BCD, 38T, steel
Wheels & Tires
Rims
Alex MD35 27.5+ / 29", hookless alloy, 35mm /30mm inner width, tubeless ready
Front Hub
HPC alloy, sealed cartridge bearings, 15x110mm thru-axle, 32h
Rear Hub
HPC alloy, sealed cartridge bearings, 148mmx12mm thru-axle, custom steel driver, 32h
Spokes
Phil Wood 14g, cold rolled/cut in house, black
Front Tire
Kenda Nevegal Pro, 27.5x2.8 / 29x2.4
Rear Tire
Kenda Nevegal Pro, 27.5x2.8 / 29x2.4
Inner Tubes
Standard, Presta Valve
Cockpit
Stem
Spank Spoon 318, 43mm length, 31.8mm bar bore
Handlebars
6061 mtn bars, 35mm diameter, 8 degree back sweep, 6 degrees up sweep, 800mm width. S1/S2: 30mm rise, S3-S6: 40mm rise
Grips
SDG Thrice, large 33mm
Saddle
WTB Volt, Cr-mo rails
SeatPost
SDG Tellis , infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 30.9, M: 125mm, L: 125mm, XL: 150mm
Seatpost Lever
Puget 2x MTB Lever
Top Speed:
750w- 28mph
1200W- 32mph
1800W- 40mph
Range:
10AH-24 Miles
15AH- 36 Miles
17.5AH- 45 Miles
Trailblazer Warranty:
3 Year
(limited): Motor, Controller, Throttle, Battery, Charger, Display
Frame: 5 Year (limited)
Components:
Follows original manufacture warranty
For further details, please look at the HPC Terms and Conditions
The Best Deal In Town
The Ultimate Enduro Bike
Unrivaled Power, Class Leading Torque

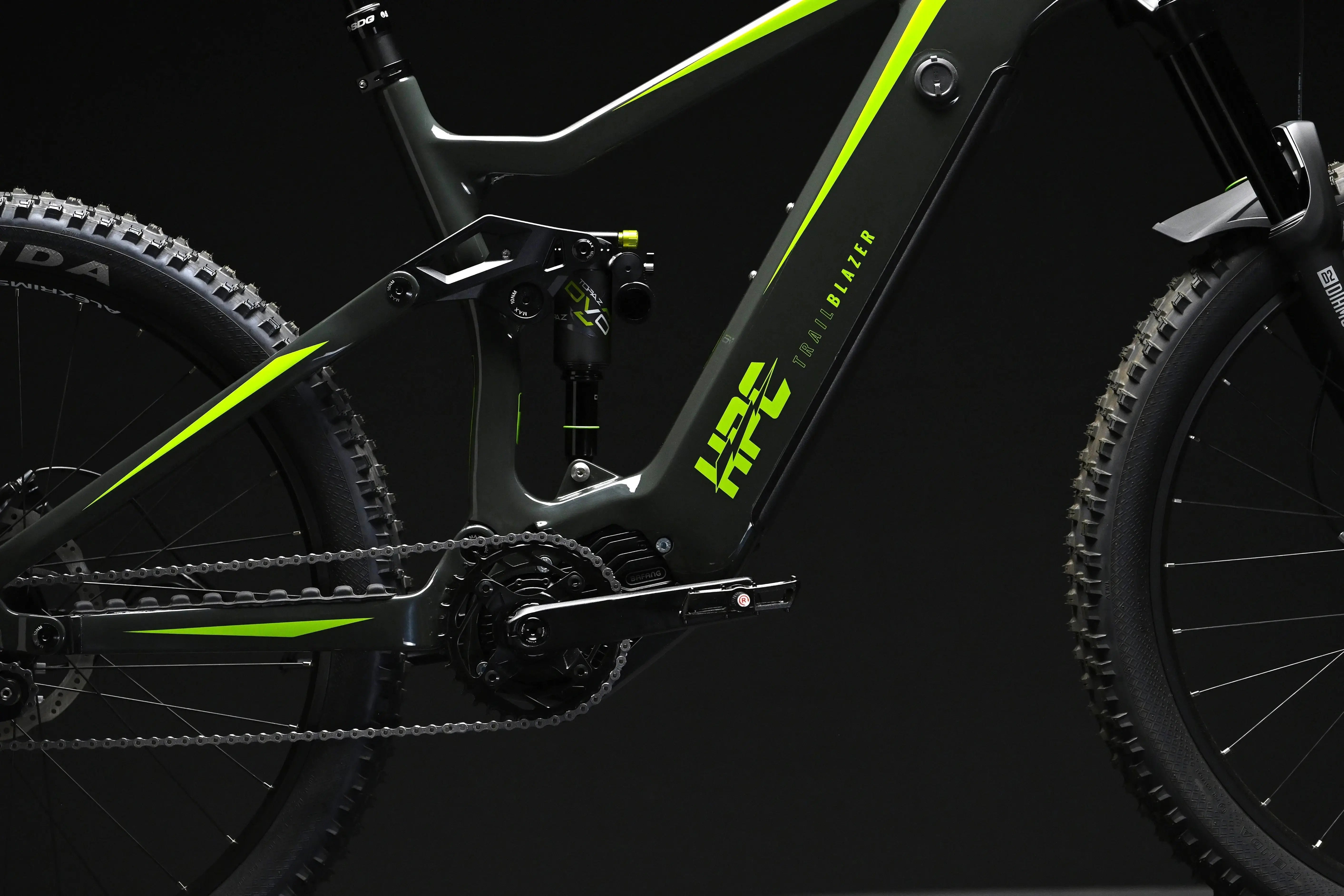

Thanks to an ultra-compact and incredibly powerful motor system, the Trailblazer offers up to 1800W of hill eating power
Bigger Battery Means More FUN!
Tired of cutting your ride short? With up to 910wh of battery juice, you can get 45+ miles of range
Factory Tuned DVO Suspension
Your Trailblazer is set up for YOU and YOUR riding style right from the factory. It is set up from the factory for optimal off-road performance
Better Components, Built For YOU!
Your Trailblazer is fully assembled in our USA warehouse to your exact specifications. From hand-built wheels to Magura brakes, the Trailblazer is loaded!
Unrivaled Power, Class Leading Torque
Thanks to an ultra-compact and incredibly powerful motor system, the Trailblazer offers up to 1800W of hill eating power
Bigger Battery Means More FUN!
Tired of cutting your ride short? With up to 910wh of battery juice, you can get 45+ miles of range
Factory Tuned DVO Suspension
Your Trailblazer is set up for YOU and YOUR riding style right from the factory. It is set up from the factory for optimal off-road performance
Better Components, Built For YOU!
Your Trailblazer is fully assembled in our USA warehouse to your exact specifications. From hand-built wheels to Magura brakes, the Trailblazer is loaded!
Pinnacle of Performance
The Value King
With top of the line components matched with cutting edge electric system, there isn't a better performing enduro e-bike out there! Best of all it is built to your exact specifications here in the USA!
A New Standard Of Performance
Blistering 40mph Top Speed
With the 1800W motor system, you can achieve up to 40mph, on flat ground with a 160lb rider
Color Display With Smart App
Low profile, high DPI color display offers all the info you need at your fingertips!
Triple Sensor Technology
With its triple sensor system (1 torque, 2 speed sensors) it reacts with lightning speed to your pedal-power input
Lightning Fast Battery Swaps
Thanks to its advanced battery latching mechanism, swap batteries in as little as 5 seconds!
Blistering 40mph Top Speed
With the 1800W motor system, you can achieve up to 40mph, on flat ground with a 160lb rider
Color Display With Smart App
Low profile, high DPI color display offers all the info you need at your fingertips!
Triple Sensor Technology
With its triple sensor system (1 torque, 2 speed sensors) it reacts with lightning speed to your pedal-power input
Lightning Fast Battery Swaps
Thanks to its advanced battery latching mechanism, swap batteries in as little as 5 seconds!
Divine Suspension
Your bike is custom tuned for your exact weight and riding style. You've never experienced anything so plush!
One Bike That Can Do It All
Jack Of All Trades
The Trailblazer is the answer to your dream wish list for the ultimate dynamic, capable, do-it-all trail shredder! With ample power, optional throttle, and massive range, it is at home on the gnarliest trails to the urban jungle. Set up the Trailblazer how you want it!
