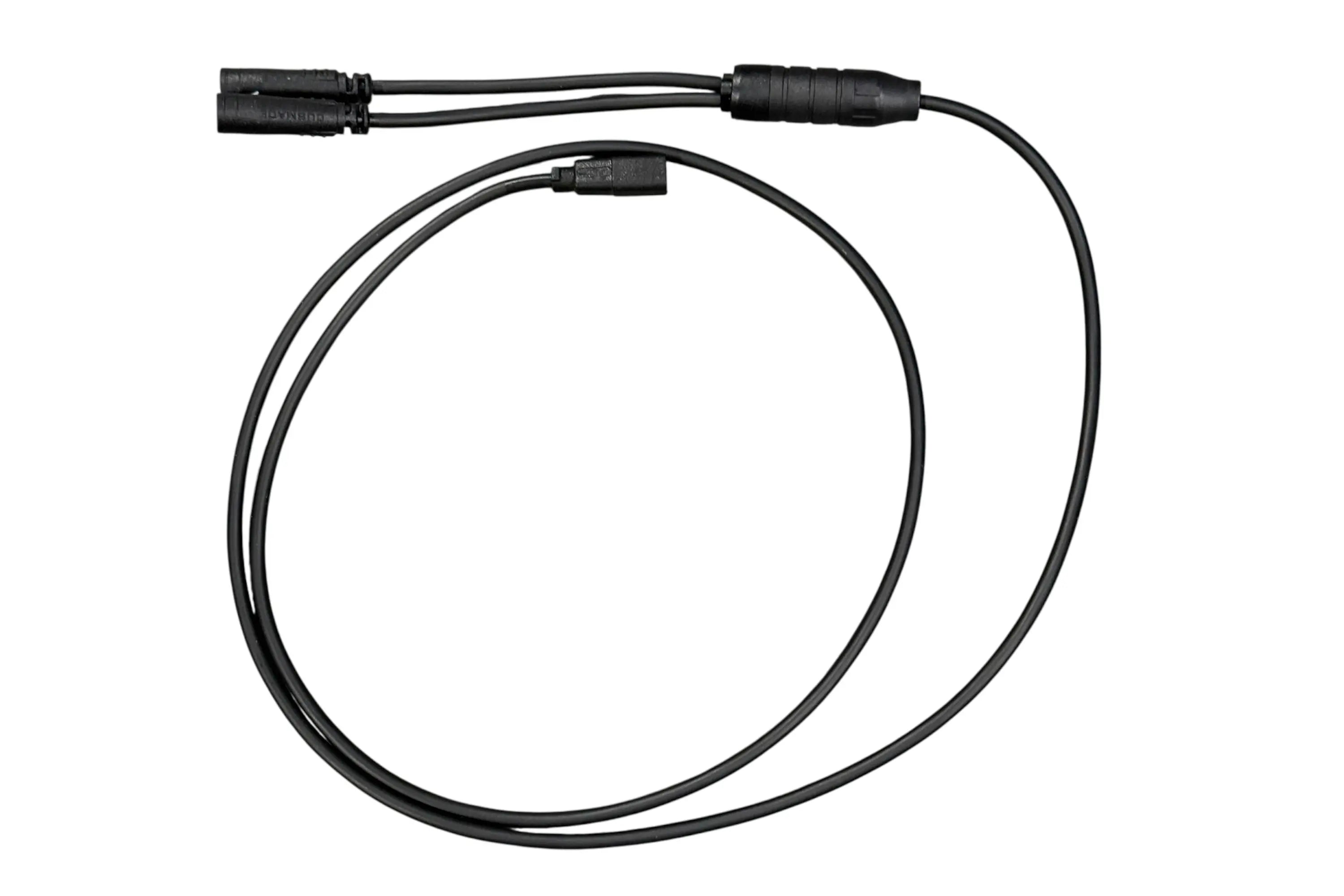

Run Magura e-brakes on your Bafang CANBUS mid drive without cutting a single wire. This custom harness connects the motor cutoff sensors from both Magura brake levers into the brake input on Bafang's M510, M560, M600 and M630 systems, so the motor cuts power the instant you pull either brake. Built in-house by Hi Power Cycles for our own Bafang builds.
Key Features
- Plug and play: connects straight into the Bafang CANBUS harness, no splicing or soldering
- Two brake sensor inputs, one for each Magura lever, merged into a single Bafang connector
- Motor cuts power whenever either brake is pulled, for safer stops and longer pad life

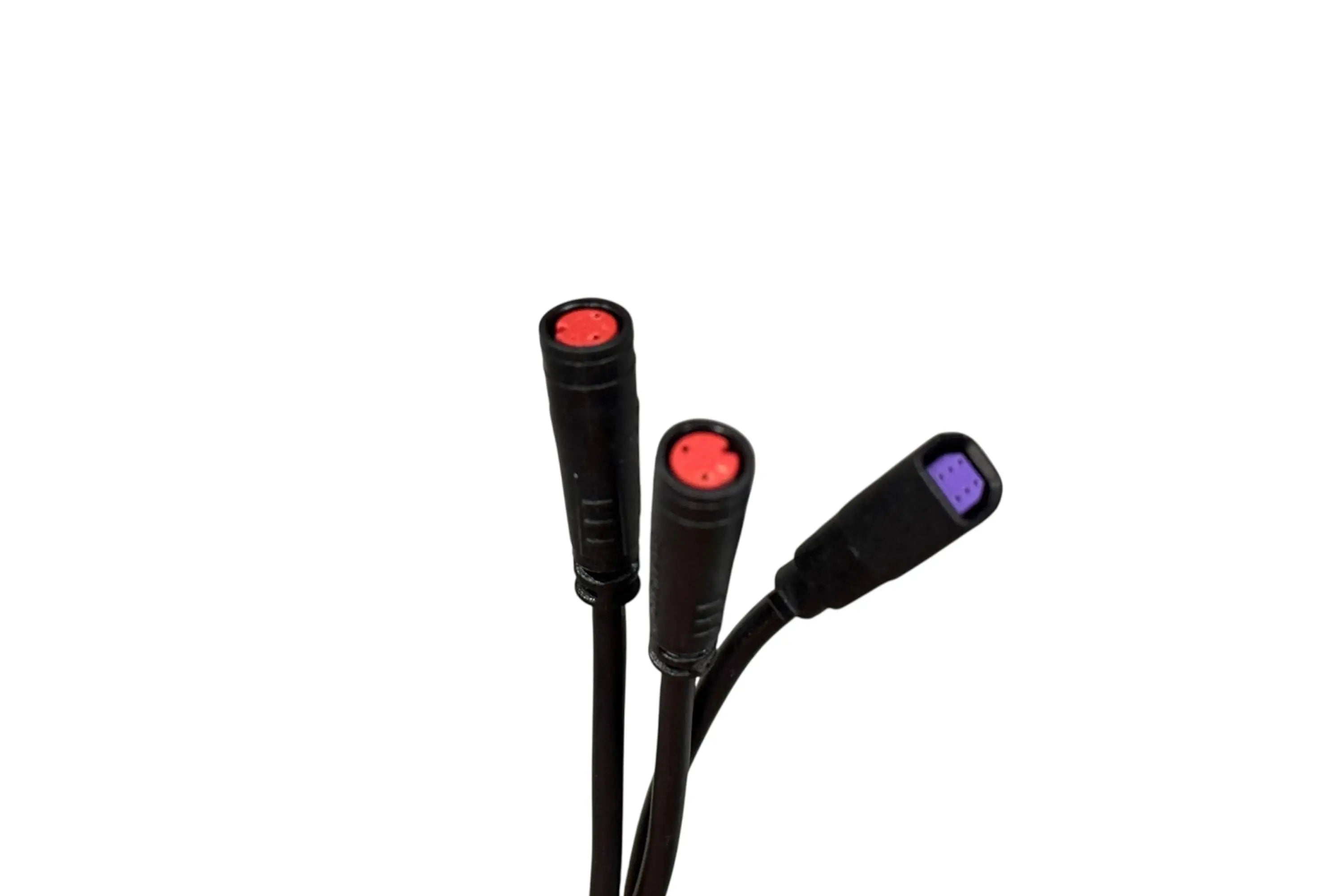

- Molded, factory-style connectors
- Custom made by Hi Power Cycles
Specifications
| Fits motors |
Bafang CANBUS M510, M560, M600, M630 |
| Brake compatibility |
Magura e-brakes with motor cutoff sensors (e.g. MT4e, MT5e) |
| Brake inputs |
2 (left and right lever) |
| Installation |
Plug and play |
Compatibility
For Bafang mid drives using the CANBUS (CAN) communication system: M510, M560, M600 and M630. Not for UART-based Bafang motors such as the BBS01, BBS02 or BBSHD. For a stock Bafang harness with a single brake connector, see our Magura Brake Cutoff Adapter for Bafang.
What's Included
- 1 × Bafang CANBUS brake cutoff adapter harness for Magura
Need brakes? Shop the Magura MT5E E-Bike Hydraulic Disc Brake or the Magura MT4-E Brake Kit.
